1000 pound beam challenge
by Bjorn Lampson
—
published
2022/11/13 04:03:00 GMT+0,
last modified
2022-11-16T04:40:08+00:00
The idea is to build a beam out of Styrofoam and Epoxy fiberglass with the following dimensions: span 40', web 8", and a cap width of 3", weighing under 25 lbs. When supported at each end, the beam should carry a distributed load of 1000 lbs without being damaged.

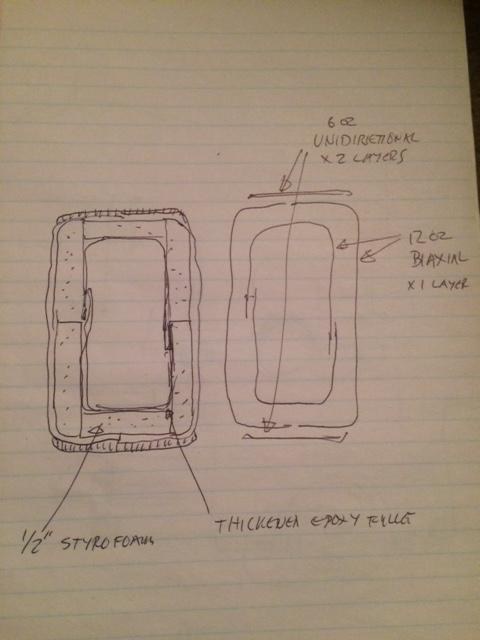

Box beam
https://theidea.club/Members/075d4981eb3a43609203f823cd548271/1000-pound-beam-challenge/img_0381.jpg/view
https://theidea.club/Members/075d4981eb3a43609203f823cd548271/1000-pound-beam-challenge/img_0381.jpg/@@download/image/IMG_0381.JPG

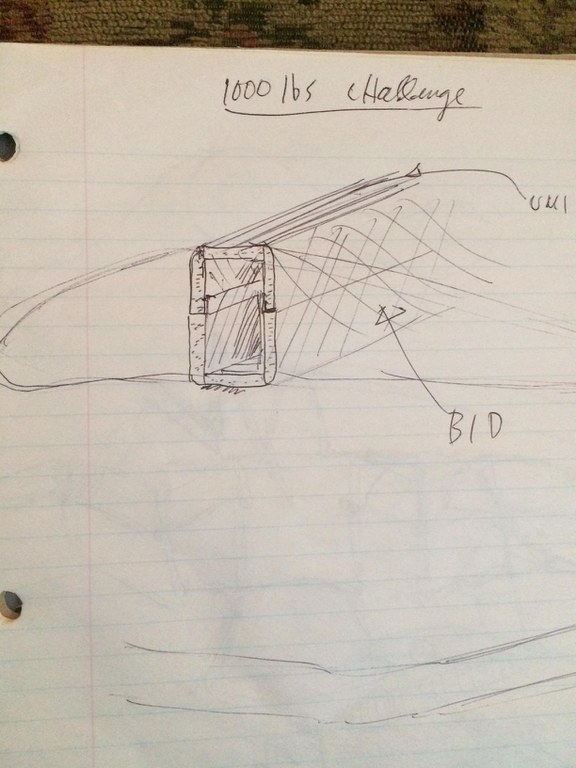

Box beam lay up
